Mission Plan Handoff Architecture For MAVLink Shim

Andi Lamprecht ·2026-05-11· 3 min read· Accepted

Mission Plan Handoff Architecture for Mavlink Shim

Context

The Uncrew onboard software component needs to communicate mission plan changes to the Avatar and Frontend when route modifications occur (e.g., Return to Launch or CLZ redirects). Currently, the Mission Service formats missions with specific objectives, but the shim uses a different approach when generating new paths. We need to standardize how these updates are communicated to maintain consistency in the user experience.

Decision Drivers

• Need for consistent mission plan representation across different sources (Mission Service vs. shim)
• Requirement to display updated traversal paths and associated SOPs clearly
• UTM compliance through flight intent updates
• Frontend and Mission Service state synchronization

Decision

Mission Plan Update Format

The Uncrew onboard software will package mission updates in the following structure:

message SubmitMissionPlanUpdate {
    types.v1.UavID uav_id = 1;
    MissionPlan plan = 2;
    types.v1.MissionID mission_id = 3;
    google.protobuf.Timestamp created_at = 4; // Onboard time when mission create, needed to prevent potential race condition of mission updates in mission service and frontend.
    bool skipApproval = 5; // UAV will fly this path even when UTM does not approve it.
    string plan_id = 6; // Unique plan id generated onboard
}

message MissionPlan {
  repeated MissionItem items = 1;
}

message MissionItem {
  MissionItemDetail detail = 1;
  types.v1.Position3DWithTerrain position_with_terrain = 2;

}

Communication Flow

1. Initial Path Change Trigger

• Shim receives command (RTL/CLZ)
• Pathfinder generates new route
• Shim prepares MissionPlanUpdate

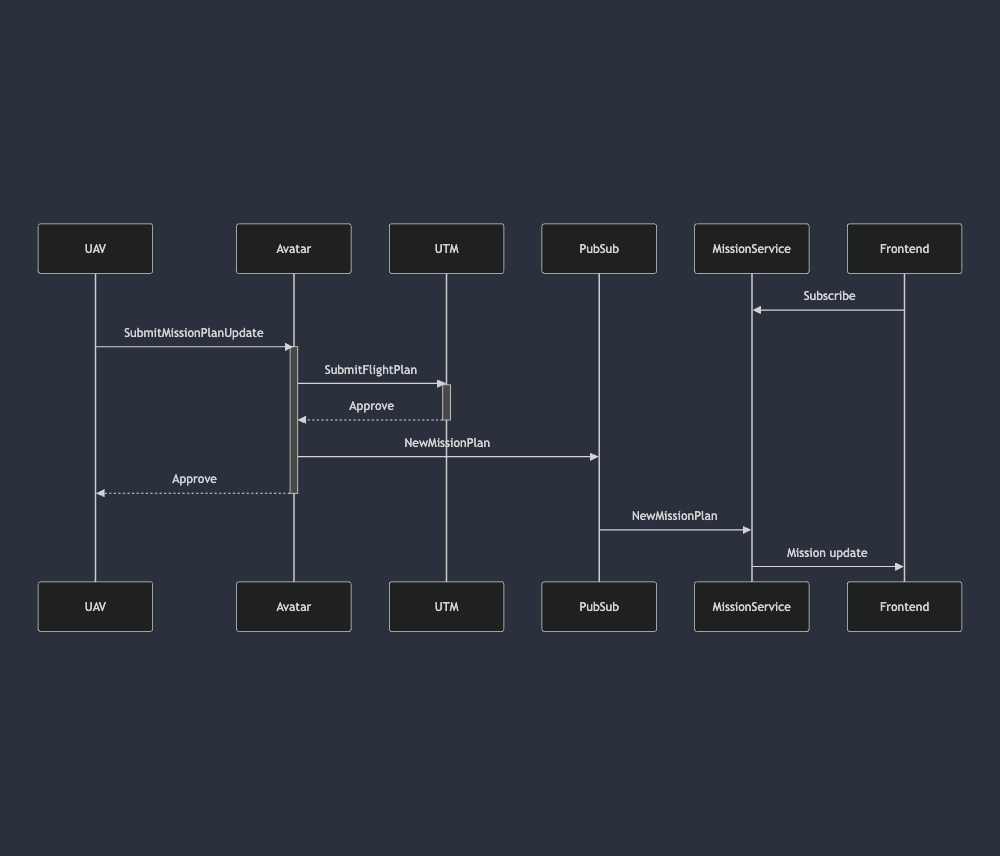

2. Happy path

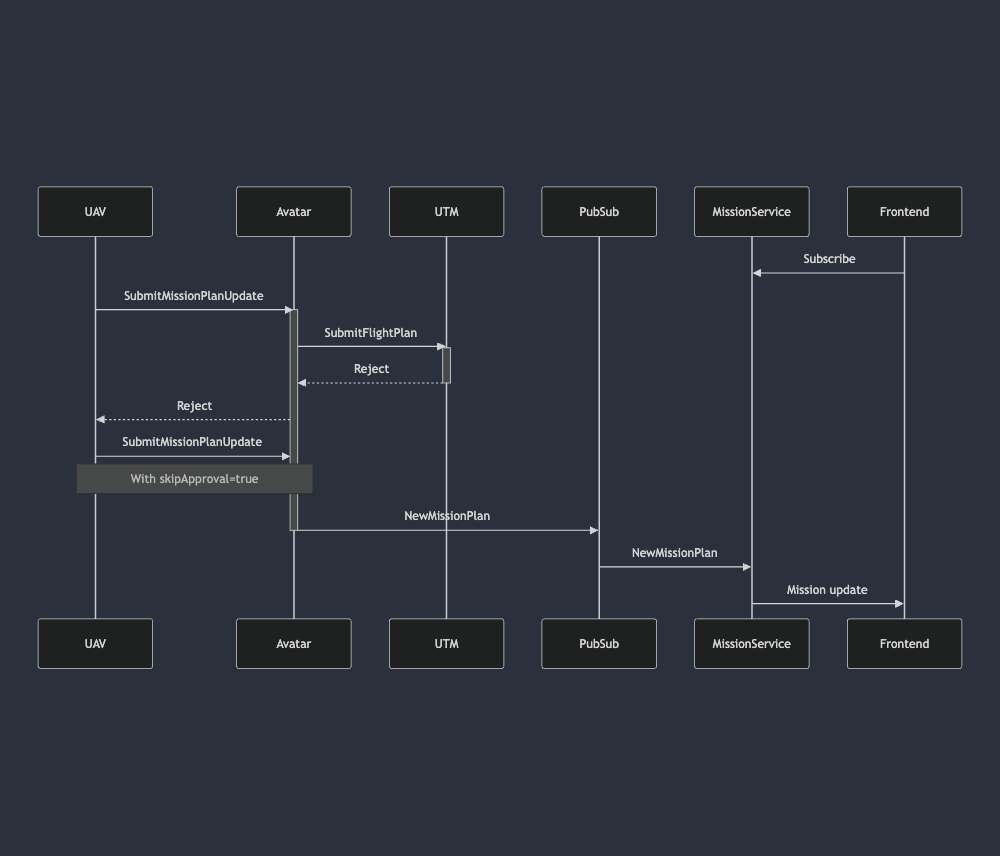

3. JeffRTL Scenario

If Pathfinder fails or UTM rejected new path then we execute JeffRTL and send SubmitMissionPlanUpdate message with skipApproval=true to notify the mission service and frontend about new plan.

Error Handling

Rejection Scenarios

1. UTM Rejection

• Attempts alternate path if available
• Falls back to JeffRTL if no alternative plans or they rejected too

2. Avatar Rejection\Connection lost

• Shim implements retry logic (max 3 attempts)
• Falls back to JeffRTL if all attempts fail

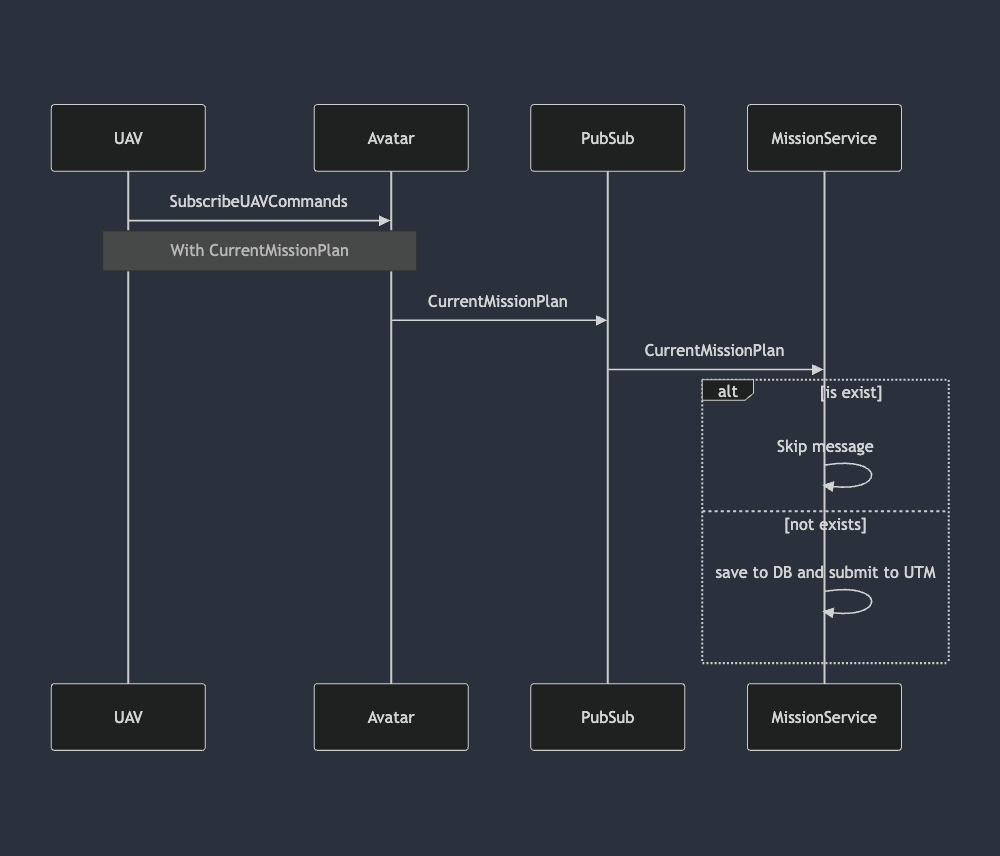

• The Pilot and Mission Service always need to know the current mission plan, even in cases when we establish a connection after a long connection loss. To support this, the UAV should send the current mission plan on each connection to the SubscribeUAVCommands stream.

Consequences

Positive

• Clear error handling paths
• Maintained UTM synchronization
• Frontend state consistency
• Connection and fault tolerance

Negative

• Potential race conditions in state updates

References

UNCREW-3319: Interface on new mission plans with Avatar/Onboard
